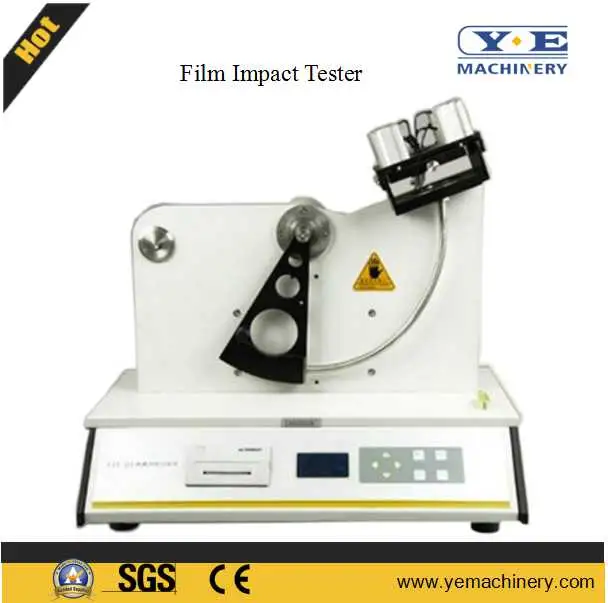

Film Impact Tester is professionally applicable to the determination of impact resistance properties of pendulum of plastic films, sheets, composite films, aluminum foils and other materials.
Professional Technology:
Adjustable range and electronic measurement support various combinations of non-standard test conditions.
Pneumatic specimen clamping, pendulum release mechanism and horizontal adjustment system effectively reduce the errors caused by manual operation.
The system provides automatic statistics of testingdata for users' convenient viewing.
The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and testreports.
Test Principle:
The impact resistance of films could be obtained by measuring the energy consumed by hemispheric impact head to make films ruptured, under the certain impacting conditions.
This instrument conforms to various national and international standards:GB 8809-88, ASTM D3420,NF T54-116
Applications:
This instrument is applicable to the determination of impact resistance of:
Technical Specifications:
Configurations:
Machine Detail:
Professional Technology:
Adjustable range and electronic measurement support various combinations of non-standard test conditions.
Pneumatic specimen clamping, pendulum release mechanism and horizontal adjustment system effectively reduce the errors caused by manual operation.
The system provides automatic statistics of testingdata for users' convenient viewing.
The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
Supports LystemTM Lab Data Sharing System for uniform and systematic management of test results and testreports.
Test Principle:
The impact resistance of films could be obtained by measuring the energy consumed by hemispheric impact head to make films ruptured, under the certain impacting conditions.
This instrument conforms to various national and international standards:GB 8809-88, ASTM D3420,NF T54-116
Applications:
This instrument is applicable to the determination of impact resistance of:
Basic Applications | Including plastic films, sheets and composite films,e.g. PE/PP composite films, aluminized films, aluminum plastic composite filmsand nylon films for food or drug packages |
| Including paper and paper board,e.g. aluminized paper for cigarette packages and Tetra Pak materials | |
| Extended Applications | Test range could be extended to 5J |
Technical Specifications:
| Impact Energy | 1J, 2J, 3J (Standard) |
| Resolution | 0.001J |
| Impact Head Size | Ф25.4mm, Ф19mm, Ф12.7mm (Customization is available) |
| Specimen Clamp Diameter | Ф89mm, Ф60mm |
| Specimen Size | 100 mm x 100 mm or Ф100mm |
| Gas Supply Pressure | 0.6 MPa(outside ofsupply scope) |
| Port Size | Ф6mm PU Tubing |
| Instrument Dimension | 600 mm (L)x 390 mm (W)x 600 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 64 kg |
Configurations:
Standard Configurations | Mainframe, Pendulumsof 1J, 2J and 3J, Standard Impact Heads of Ф25.4mm and Ф19mm, Standard Clamp Plates of Ф89mm and Ф60mm (including O-ring)and Micro Printer |
| OptionalParts | Professional Software, Communication Cable, Customized Impact Head and O-ring |
| Note | 1. The gas supply port of this instrument is Φ6 mm PU Tubing; 2. Customers will need to prepare for gas supply. |
Machine Detail:
